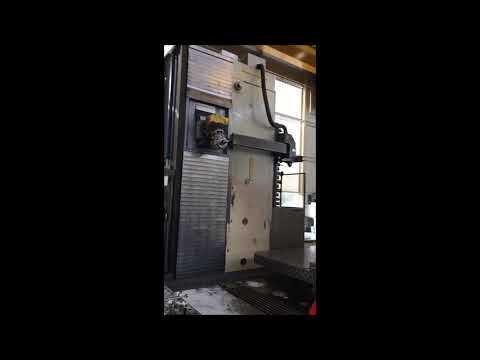

Zayer 30 KCU 16000 AR cnc travelling column milling machine Verified seller

Price on request

Make an offer

Manufacturer	Zayer
Model	30 KCU 16000 AR
Year	2003
Location	Spain
Category	Milling - travelling column milling machines
Product id	P80119179
Language	Zayer 30 KCU 16000 AR Mobilní sloupová frézka Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR CNC-Mobile Säulenfräsmaschine Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR cnc travelling column milling machine Fresadora cnc de columna móvil Zayer 30 KCU 16000 AR Fraiseuse cnc à colonne mobile Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Fresatrice cnc a colonna mobile Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Mobilna frezarka kolumnowa CNC Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Мобильный фрезерный станок с колонной с ЧПУ Zayer 30 KCU 16000 AR Zayer 30 KCU 16000 AR Cnc mobil kolon freze makinesi Zayer 30 KCU 16000 AR

Details
About this seller

Specifications

X Axis	629.92126 in
Y Axis	59.05512 in
Z Axis	137.79528 in
CNC type	Heidenhain iTNC 530
Max. spindle speed	4500 rpm
Table length	98.4252 in
Table width	98.4252 in
Max load on table	44080 lb
Spindle taper	HSK 100
Spindle motor power	53.64 HP
Overhauled	no
-------------------
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
Datasheet	Zayer 30KCU 10000 AR

Description

Travelling column milling machine
Model: 30 KCU 16000 AR
Travels:
- X axis: 16000 mm
- Y axis: 1500 mm
- Z axis: 3500 mm
Spindle taper: HSK 100 DIN 69893
Fast forward axis: 25000 mm / min
Work feedrate: 6-10000 mm / min
Distances between the base area of the machine:
- Universal head in horizontal position (bottom): 1255-4755 mm
- Universal head in horizontal position (up): 1770-5270 mm
- Universal head in vertical position: 1190-4690 mm
Motor power: 40 kW AC
Spindle speed: 35-4500 rpm with ZF box
Year of manufacture: 2003

Machine equipped with:
- Heidenhain iTNC 530 CNC
- Heidenhain HR 410 electronic handwheel
- Tool magazine: 100 units. Load both horizontal and vertical head position.
- Pick-up of heads:
A / B: 0.001 ° - 0.001 °. 5 continuous axes.
D'Andrea mandrel head, type UT 5/500 S
- Knoll refrigeration system and Typ 250 processing plant with a capacity tank of 2500 L
- Chip conveyor
- 1 Rübenach subjection plate: 10000 x 2500 x 300 mm
- 1 Rübenach subjection plate: 4000 x 2500 x 300 mm
- 1 Peiseler ATU 1600 rotary table: 2500 x 2500 / Permissible weight: 20 Tn
- Operator cabin with lift

Please note that this description may have been translated automatically. Contact us for further information. The information of this classified ad are only indicative. We recommend to check the details with the seller before a purchase
